Git vs. GitHub

GitHub uses Git as central tool for its service

Architecture - directed acyclic graph

The history in Git is formed from the commit objects and creates a directed acyclic graph

Architecture - Distributed Development

Architecture - Distributed Development

• Each developer has its own full repository

• Advantage: No network connection needed for commits.

• Checkins in local repository also work if production branch is broken.

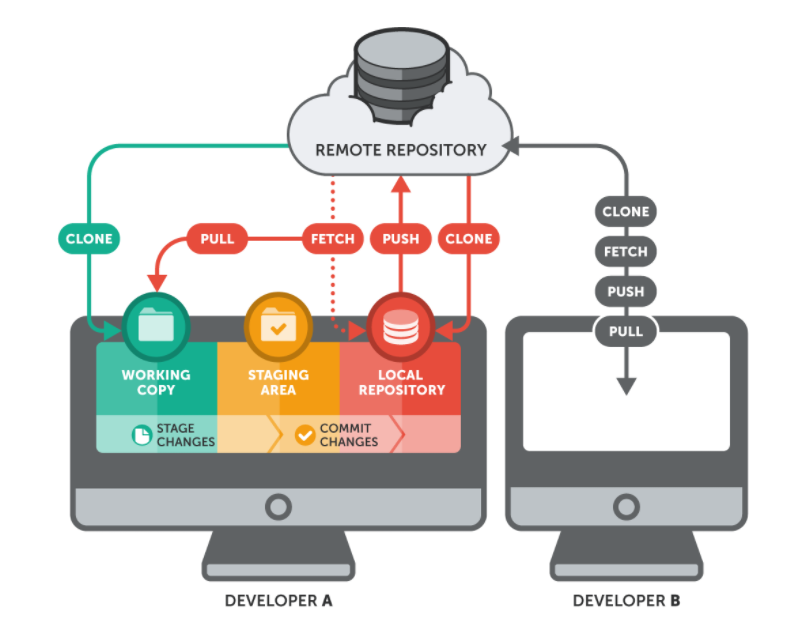

Architecture - Git-Workflow

Recommended sequence: commit → pull → push

Architecture - Creating a new repository

git init

Project directory	.git directory
contains .git directory and current checked out data	HEAD is a reference to the checked out commit

Differences to TFS

Git is recommended over TFS by Microsoft itself for new projects!

Migration form TFS to Git

When history is not needed in Git:

git init

When history is not needed in Git: http://git-tfs.com/

git tfs clone ...

git-tfs works as two-way bridge so changes can also be pushed to TFS

git tfs checkintool

Migration form TFS to Git

Plan your migration carefully:

• cleanup before migration: e.g. large file → NuGet-Packages

• for big projects multiple Git-Repositories could be created and included via Submodule/Subtree

Git-Configuration

• can be local for git-repository within .git/config

• can be global via global flag git config --global ...

• can be accessed via git config --list

Git-Configuration

Typical settings:

• git config --global core.editor "code --wait"
• git config --global user.name "John Doe"
• git config --global user.email johndoe@example.com
• git config --global merge.tool kdiff3
• git config --global credential.helper cache

.gitignore

• .gitignore-File specifies files that Git should ignore

• files already track are not affected!

• each line in .gitignore specifies a pattern

.gitignore - Patterns

• # serves as a comment
• ! negates a pattern
• / directory separator
  • slash at beginning → relative to the .gitignore-directory, otherwise any level
  • slash at end → matches only directories, otherwise also files
• * matches anything except slash
• ? like * but only one character
• ** match in all directories, e.g. **/foo
• /** matches everything inside, e.g. foo/**
• /**/ matches zero or more directories, e.g. foo/**/foo

Tooling

• IDEs: VisualStudio, VS-Code
• Clients: Github Desktop, SourceTree, SmartGit, GitKraken, GitTower
• Explorer-Integration: TortoiseGit
• Merge-Tools: meld, kdiff3
• Shells: ZSH+Plugin (for Windows: https://ohmyposh.dev/)
• Git LFS

Branching

Creating a new branch: git branch <branchname>

branches are very lightweight in Git: You can have many and switch very fast.

Branching

list branches:

git branch** or **git branch -v

add option to filter branches (not) merged into the branch you are currently on:

--merged --no-merged

Branching

rename branch:

git branch --move bad-branch-name corrected-branch-name

git push --set-upstream origin corrected-branch-name

git push origin --delete bad-branch-name

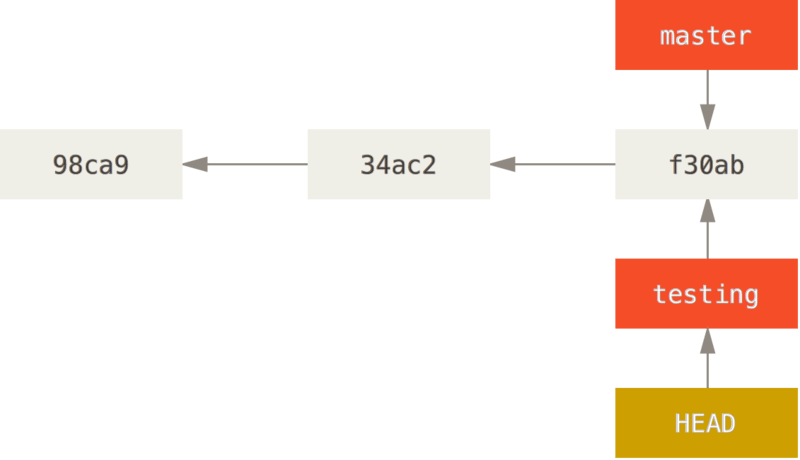

Branching

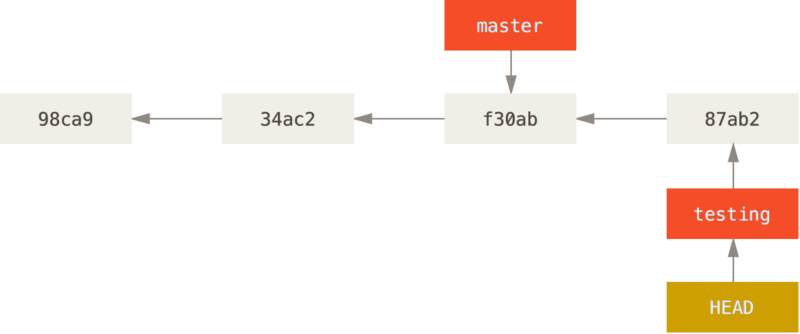

Branching

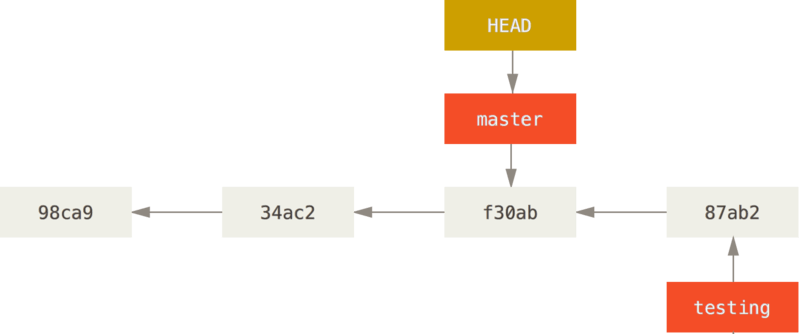

Branching

Git-Flow

Git-Flow

Pros

• isolated features
• Only tested code comes in master
• easy traceability as merges are bundled/labeled
• good for traditional software distribution

Cons

• Many branches with complicated rules
• Heavy maintenance workload for released versions
• structured and specific development path conflicts with agile iterative approach

Github-Flow

Github-Flow

Pros

• clear and simple collaboration rules
• Continuous integration and deployment
• Less risk of technical debt with this branching strategy

Cons

• Fast, but less organized in comparison to Git-Flow
• This branching stratey emphasizes constant deployment. Limitation for teams that tent to make larger releases or test several features together
• release preparation and bug fixes happen both in master branch → requires attention

Gitlab-Flow

Gitlab-Flow

Pros

• similar advantages as Github-Flow
• Additionaly enables time releases to production, e.g. when only few customers are on platform

Cons

• more complex than Github-Flow
• could become more complex than Git-Flow when maintaining multiple versions is needed

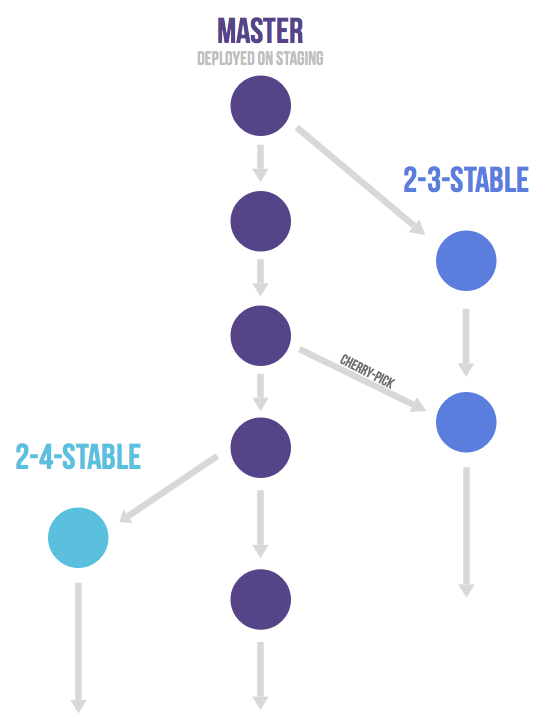

Gitlab-Flow

The GitLab Flow is based on 11 rules:

• Use feature branches, no direct commits on master
• Test all commits, not only ones on master
• Run all tests on all commits (parallel if >5 minutes)
• Perform code reviews before merges into master, not afterwards.
• Deployments are automatic, based on branches or tags.
• Tags are set by the user, not by CI.
• Releases are based on tags.
• Pushed commits are never rebased.
• Everyone starts from master, and targets master.
• Fix bugs in master first and release branches second.
• Commit messages reflect intent.

Trunk-Based-Development

• pure TBD has only master branch
• scaled TBD: additional short-lived feature branches to have isolation in bigger teams

Trunk-Based-Development

Pros

• Quicker releases
• enhances collaboration
• key enabler of CI/CD

Cons

• suited more to senior developes as directly working on shared trunk

Trunk-Based-Development

Trunk-Based-Development is recommended in this book

Comparison of Workflows

https://www.flagship.io/git-branching-strategies/

Current Workflow

Working with Remotes

“Remote repositories are versions of your project hosted on Internet or network somewhere”

Working with Remotes

• to list the current remotes you can use git remote -v

• a remote can be inspected with git remote show origin

• remotes can be added with git remote add pb <e.g. some github-repo-url>

• to remove a remote use git remote remove <remote-name>

Working with Remotes

on a cloned repo the origin is already set

fetching from a remote: git fetch

pulling (combination of git fetch and git merge) from a remote: git pull

pushing to a remote: git push origin master

Pull-Request

“Generate a request asking your upstream project to pull changes into their tree.”

Push: git push https://git.ko.xz/project master

vs.

Pull-Request: git request-pull v1.0 https://git.ko.xz/project master

Git log

• all: git log --decorate --graph --oneline --all

• by amount: git log -3

• by date: git log --after="2014-7-1"

• by author: git log --author="John"

• by message: git log --grep="JRA-224:"

Git log

• by file: git log -- foo.py bar.py

• by content: git log -S"Hello, World!"

• by range: git log main..feature

• by merges: git log --merges git log --no-merges

Tagging

• you can create a tag with git tag -a v1.9 -m "my version 1.9"
• list your existing tags with git tag git tag -l "v1.8.5*"
• to get the data of a tagged commit use: git show v1.9
• tag later by specifying the commit to tag: git tag -a v1.9 9fceb02

Tagging

• by default git push does not transfer tags. instead use git push origin v1.9 git push origin --tags
• tags can be deleted with git tag -d v1.9
• to checkout a tagged commit use git checkout v1.9 be aware of detached HEAD!

Git Aliases

“Can simplify your Git-experience by settig custom aliases that are easier/shorter”

git config --global alias.unstage 'reset HEAD --'

→

git unstage fileA instead of git reset HEAD -- fileA

Submodules

“A git submodule is a record within a host git repository that points to a specific commit in another external repository.”

git submodule add https://bitbucket.org/somerepo/awesomelibrary

Submodules

• Submodules do not track git refs or branches and are not automatically updated when the host repository is updated

• If you need to maintain a strict version management over your external dependencies, it can make sense to use git submodules

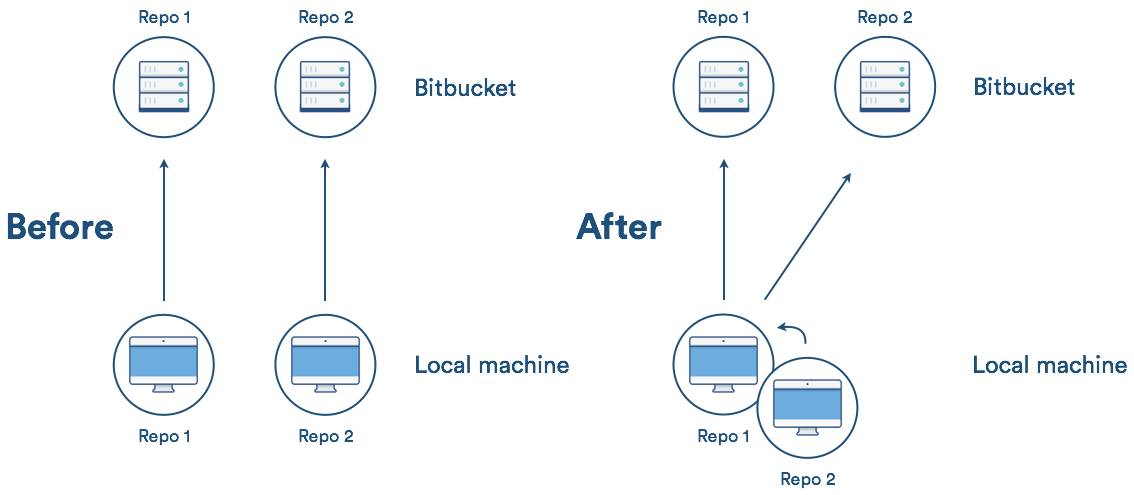

Subtrees

Subtrees

Pros

• The sub-projects code is available right after the clone of the super project is done
• less overhead than Submodules (e.g. does not add new metadata files)

Cons

• you have to learn a new merging strategy (subtree merge)
• contributing code back to the sub-projects is more complicated

Merge strategies

If not specified explicitly Git will automatically choose a strategy based on the branches provided for merging

• Fast Forward
• Recursive
• Ours
• Octopus
• Resolve
• Subtree

Merge: Fast Forward

git rebase

• most common merge strategy: history is just one straight line
• No new merges on master between branch creation and merge

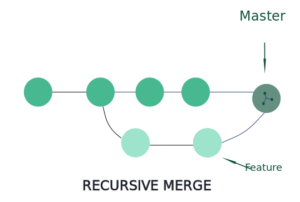

Merge: Recursive

git merge --no-ff

• New commits on master before branch is merged back to master

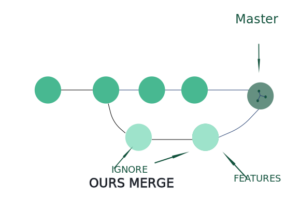

Merge: Ours

git merge -s ours

• resolves any number of heads → resulting tree of merge is that of the current branch head ignoring all changes from other branches

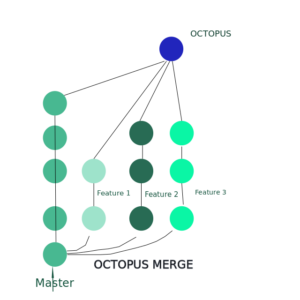

Merge: Octopus

git merge -s octopus

• Resolves cases with more than two heads
• Primarily for bundling topic branch heads.
• Linus Torvalds not happy about octopus merge of 66 branches

Merge: Resolve

git merge -s resolve

• Resolve two heads by using a 3-way-merge. Complex conflicts have to be solved manually.

Merge: Subtree

git merge -s subtree

• Git is often smart enough to figure out that one is a subtree of the other and merge appropriately

Mergetool & Difftool

open merge tool defined in git-config (e.g. meld): git mergetool

open diff tool defined in git-config: git diff Commit1sha Commit2sha

Merging

• Easiest way to merge one branch into another

• non destructive: does not change existing branches

• a lot of merge commits if main branch changes often

Rebasing

• no unneccessary merge commits (e.g. by squashing) → history easy readable

• Readability, but less secure and trackable

• Context lost → hard to see wenn upstream-changes are integrated into feature

Cherry-Picking

Cherry picking can cause duplicate commits → often merges are better

Usage: git cherry-pick commitSha

Cherry-Picking

Use cases for Cherry-Picking:

• Team Collaboration: backend creates data-structure and frontend-dev cherry-picks it

• Bug-Fixing: hotfix can be cherry-picked to main branch before it affects more users

Undoing commits

From local repository:

• keeping your local changes: git reset --soft HEAD
• discarding your local changes: git reset --hard HEAD
• unstage staged file: git restore --staged <filename>
• unmodifying a file: git restore <filename>

Undoing commits

From public repository:

git revert HEAD git commit -m "reverted last commit"

add additional files to your previous commit git commit --amend

Signing Commits/Tags

by signing you can verify that commits are actually from a trusted source

Setup:

gpg --gen-key gpg --list-keys git config --global user.signingkey <signingkey>

Signing Commits/Tags

• add -s to your commit command: git commit -a -S -m 'Signed commit'

• use -s instead of -a for tags: git tag -s v1.5 -m 'my signed 1.5 tag'

Stashing/Cleaning

Switching branches without commiting unfinished work:

git stash git stash list git stash apply

New branch from stash: git stash branch testchanges

Clean working dir without stashing: git clean

Debugging with Git

get File annotations: git blame -L 3,5 <somefilename>

git bisect (helps identifiying last good commit): git bisect start git bisect bad git bisect good <good_commit> git bisect reset

find strings/regex in your files: git grep -n <search-text>

Git-Hooks

Git hooks are scripts that run automatically every time a particular event occurs in a Git repository. They let you customize Git’s internal behavior and trigger customizable actions at key points in the development life cycle.

Git-Hooks

• Examples can be found at folder: .git/hooks
• Git hooks have to be executable (chmod!)
• built-in scripts are mostly shell and PERL scripts, but you can use any scripting language as long as it is executable
• hooks are repository specific and are not copied over when a repository is cloned

Git-Hooks

Enforcing Policies: Pre-Rebase-Hook to disallow rebasing

#!/bin/sh

# Disallow all rebasing
echo "pre-rebase: Rebasing is dangerous. Don't do it."
exit 1

Other use cases:

• Enforcing specific commit-message format
• Enforing a User-Based ACL System

Worth a look: Husky.NET

Handling large repositories

Very long accumulated history:

shallow clone: git clone --depth [depth] [remote-url]

clone only branch: git clone [remote url] --branch [branch_name] --single-branch [folder]

Handling large repositories

Huge binary assets that need to be tracked together with code:

• GIT-LFS: lazy loads big files at checkout instead of cloning/fetching
• git gc
• git prune

Best practices

• commit often: Each commit is a snapshot that can be reverted to
• work from latest version with pull to avoid merge conflicts
• commit notes should contain “why” and “what” of change
• review changes before commiting
• Use Branches: Enables developers to work in parallel on separate lines of product
• Agree on a common workflow, e.g. Git-Flow → otherwise overhead in merges

Advanced stuff

Rerere: “reuse recorded resolution” git config --global rerere.enabled true

Bundling: Useful when offline. Bundles data that would be pushed → send by mail → unbundle git bundle create repo.bundle HEAD master git clone repo.bundle repo

Attributes: Can be used to diff binary files by modifying .gitattributes *.png diff=exif git config diff.exif.textconv exiftool

Delete completely from Git

GitOps - What is GitOps?

GitOps is code-based infrastructure and operational procedures that rely on Git as a source control system

GitOps ensures that a cloud infrastructure is immediately reproducible based on the state of a Git repository. Pull requests modify the state of the Git repository. Once approved and merged, the pull requests will automatically reconfigure and sync the live infrastructure to the state of the repository. This live syncing pull request workflow is the core essence of GitOps

GitOps - Pipeline

To achieve a full GitOps install, a pipeline platform is required, e.g.:

• Azure-Devops-Pipelines
• Github-Actions
• Gitlab Pipelines
• Bitbucket Pipelines
• Jenkins/Jenkins X
• ArgoCD
• Flux
• Tekton Pipelines

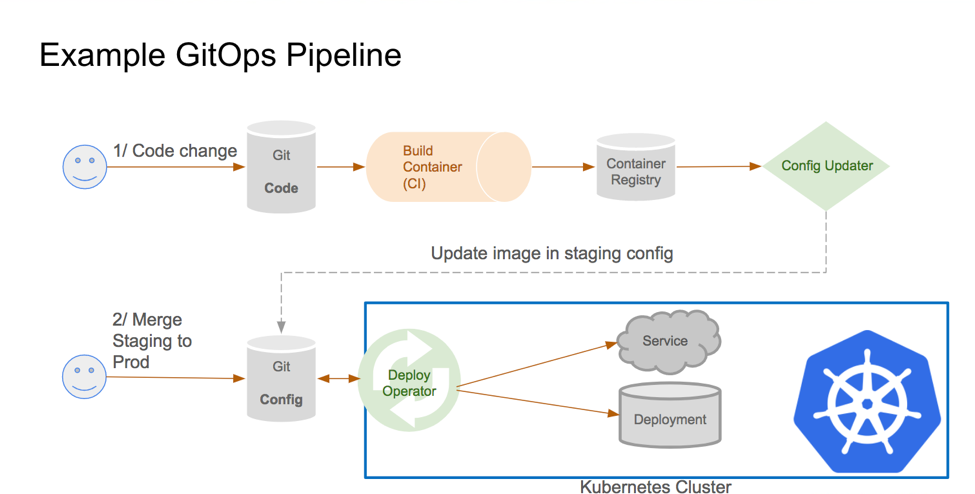

GitOps - Example Pipeline

Ressources

• https://www.atlassian.com/git/tutorials/atlassian-git-cheatsheet
• https://github.com/Gazler/githug
• https://learngitbranching.js.org
• https://docs.microsoft.com/de-de/learn/paths/intro-to-vc-git/
• https://trunkbaseddevelopment.com/
